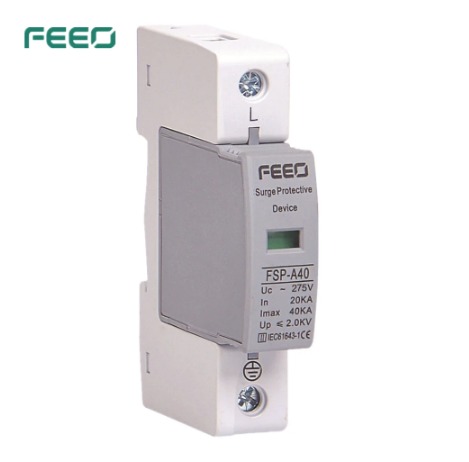

FSP-A40 40KA Indicate Ac Surge Protection With Surge Arrester

Name: FSPA40 40KA Indicate Ac Surge Protection With Surge Arrester
Brand: FEEO
Price: 3.27 USD

Quality FSP-A40 40KA Indicate Ac Surge Protection With Surge Arrester for sale

Brand Name : FEEO

Model Number : FSP-A40

Certification : CE/CCC/RoHS

Place of Origin : China

MOQ : 1 piece

Price : USD 3.27-13.08 PER UNIT

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000pcs per week

Delivery Time : 7days

Packaging Details : 72pcs per carton

Model : FSP-A40

Voltage : 275/385/420VAC

Indicator Window : Yes

In : 20KA

Imax : 40KA

Up : ≤2.0KV

Standard : IEC61643

Color : White;Grey

Contact Now

FSP-A40 AC Surge Protector 275/385/420VAC Surge Arrester 20-40KA With Indicator Window Lighting Arrester With CE

lightning absorber Application:

FSP-A series surge protection device (in short SPD,alias:surge suppressor surge arrester)is
suitable for TN-S, TN-C-S, TT, IT etc, power supply system of AC 50/60Hz,<380V, installed on the
joint of LPZ1 or LPZ2 and LPZ3. It's designed according to IEC61643-1, GB18802.1, it adopts
35mm standard rail, there is a failure release mounted on the module of surge protection device,
When the SPD fails in breakdown for over heat and over-current, the failure rlease will help electric
equipments separate from the power supply system and give the indication signal, green means
normal, red means abnormal, it also could be replaced for the module when has operating voltage.

lightning absorber Product Features:

1.Inside over-current and over-heat protection, temperature control open circuit.
2.Module design, convenient installation, could be replaced online.
3.Time of response <25ns
4.The color of visible window shows operating status, green means normal, red means abnormal

lightning absorber Technical Date:

Technical Parameters	FSP-A
Rated Operating Voltage Un(V~)	380V/220V
Maximum Continuous Operating Voltage Uc(V~)	275V	320V	385V	385V	385V	420V
Voltage protection Level Up(V~)kV	≤1.0	≤1.2	≤1.8	≤2.0	≤2.2	≤2.8
Nominal Discharge Current ln (8/20s)kA	5	10	20	30	40	60
Maximum Discharge Current lmax(8/20s)kA	10	20	40	60	80	100
Response Time (ns)	<25
Test Standard	IEC61643.1, GB18802.1
Operating Environment(centigrade)	-40℃ ~+85℃
Max Connection Line	35mm2 hard wire/35mm2 strand wire copper line
Recommended Connection Line	16mm2 hard wire/25mm2 strand wire copper line
Installation	Standard Rail 35mm
Material of Outer Covering	Burning-proof Nylon

FSP-A40 40KA Indicate Ac Surge Protection With Surge Arrester
